Lab 1

3 min read

Course: CSCI 2020

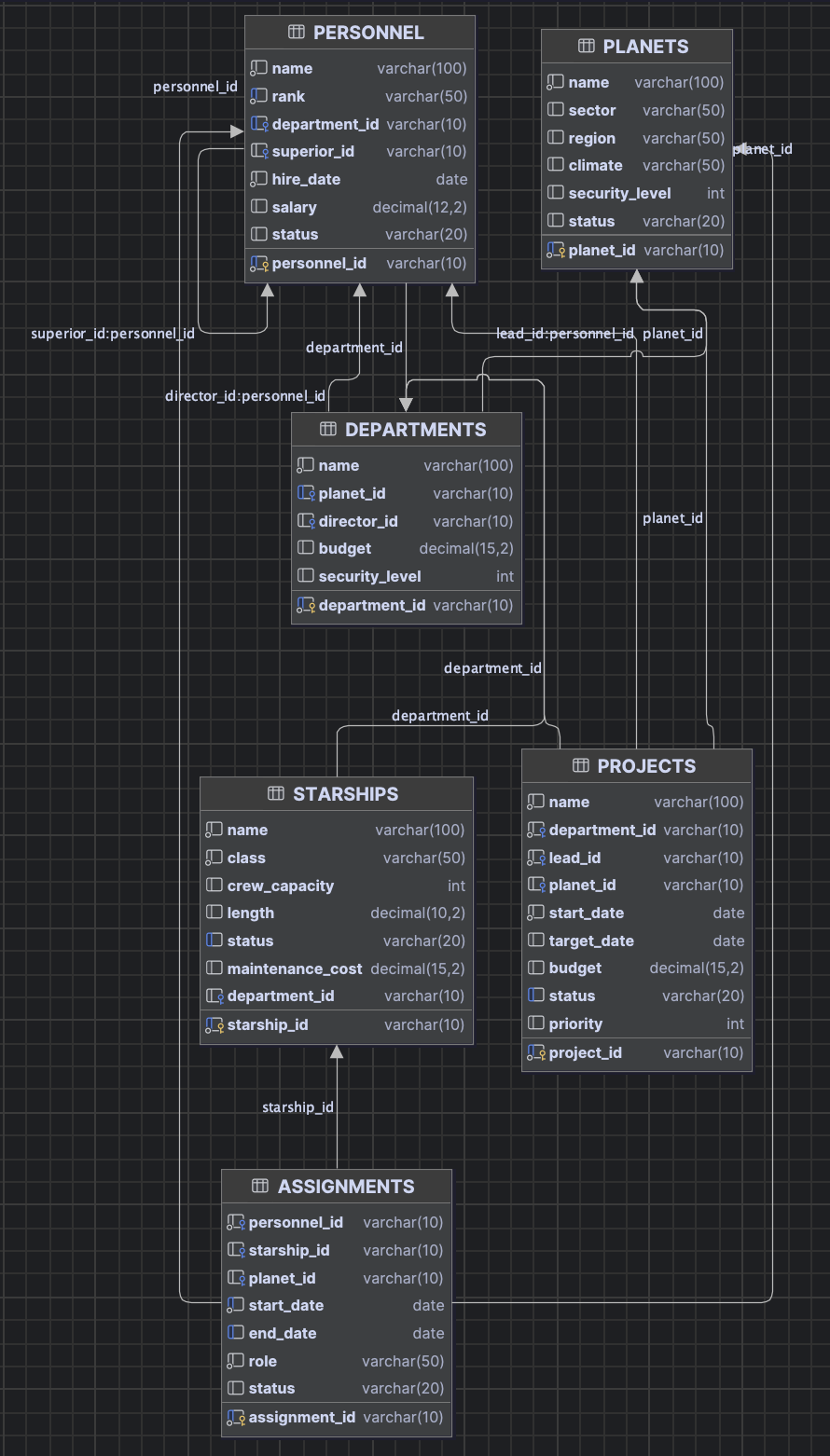

Part 1: System Verification

Primary Keys

  • PLANETS → planet_id
  • DEPARTMENTS → department_id
  • PERSONNEL → personnel_id
  • STARSHIPS → starship_id
  • ASSIGNMENTS → assignment_id
  • PROJECTS → project_id

Foreign Keys

  • DEPARTMENTS
    • planet_id → PLANETS(planet_id)
  • PERSONNEL
    • department_id → DEPARTMENTS(department_id)
    • superior_id → PERSONNEL(personal_id)
  • STARSHIPS
    • department_id → DEPARTMENTS(department_id)
  • ASSIGNMENTS
    • personnel_id → PERSONNEL(personnel_id)
    • starship_id → STARSHIPS(starship_id)
    • planet_id → PLANETS(planet_id)
  • PROJECTS
    • department_id → DEPARTMENTS(department_id)
    • lead_id → PERSONNEL(personnel_id)
    • planet_id → PLANETS(planet_id)

Part 2: Basic Intelligence Gathering

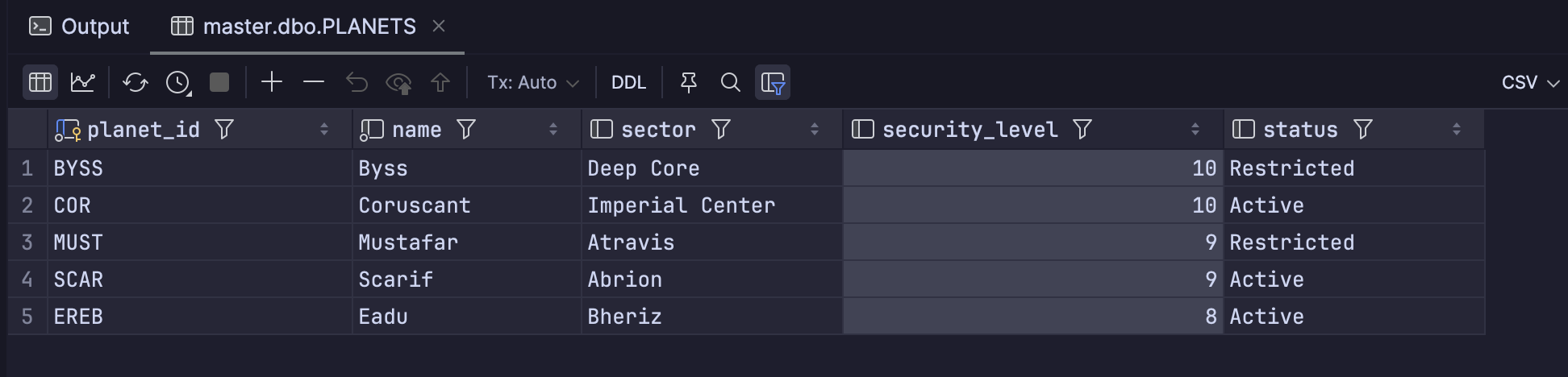

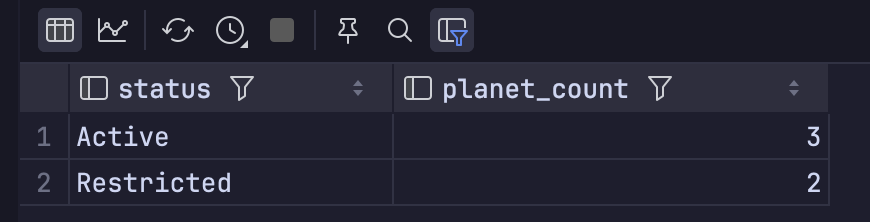

Planetary Systems Analysis

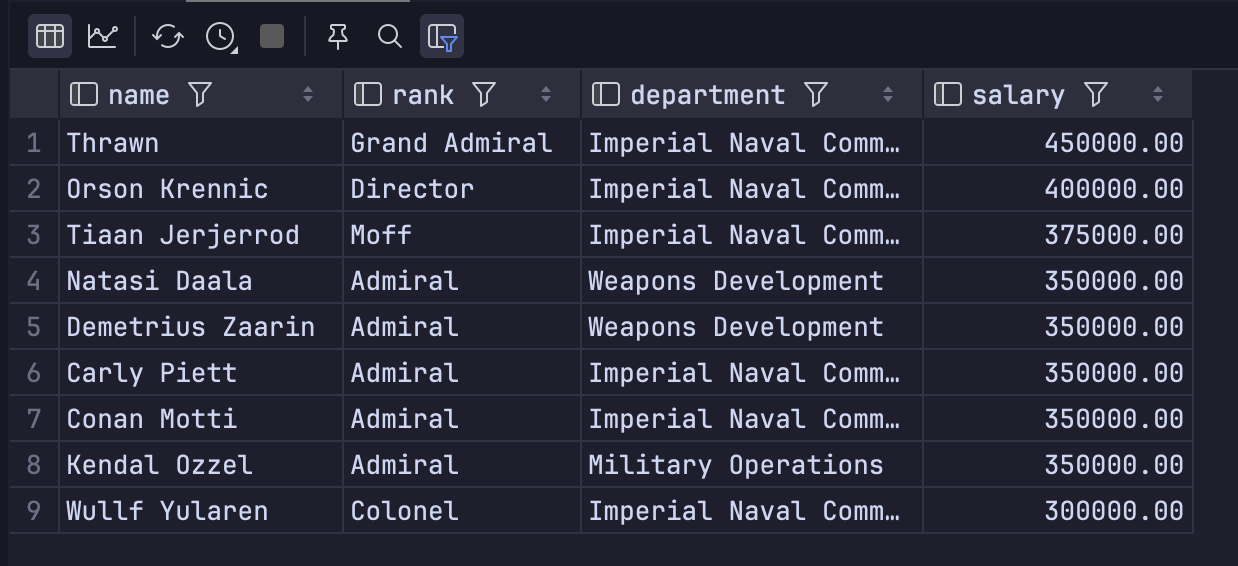

Personnel Records Investigation

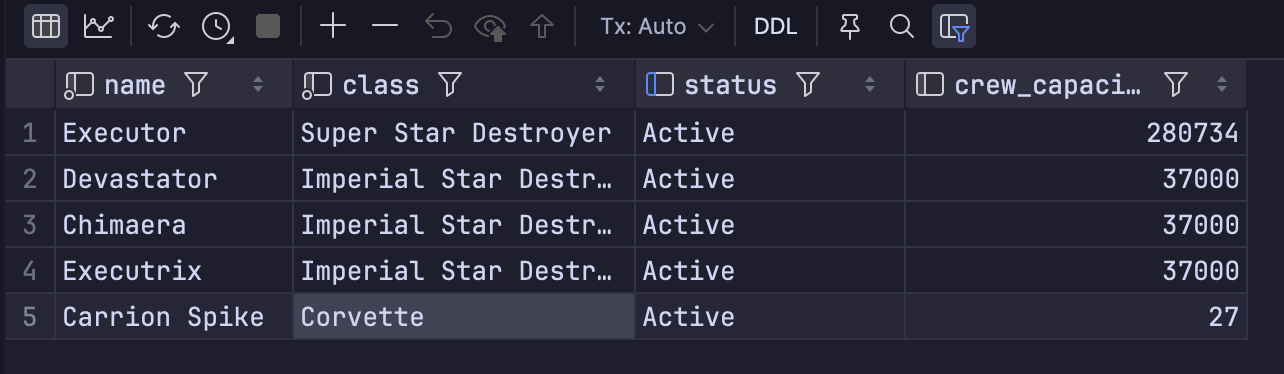

Fleet Asset Inventory

Part 3: Basic Intelligence Operations

Personnel Analysis

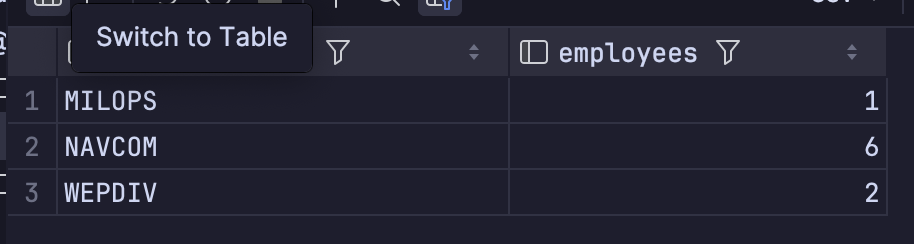

SELECT department_id, COUNT(*) AS employees
FROM PERSONNEL
WHERE department_id IS NOT NULL
GROUP BY department_id;

SELECT *
FROM PERSONNEL
WHERE salary > 400000;

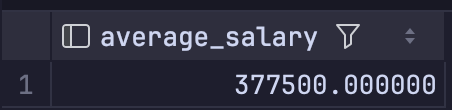

SELECT AVG(salary) as average_salary
FROM PERSONNEL;

Starship Investigation

SELECT *
FROM STARSHIPS
WHERE class = 'Imperial Star Destroyer';

SELECT status, COUNT(*) AS count
FROM STARSHIPS
GROUP BY status

SELECT *
FROM STARSHIPS
WHERE crew_capacity = (SELECT MAX(crew_capacity) FROM STARSHIPS);

Project Status Report

SELECT *
FROM PROJECTS
where status = 'Active'

SELECT status, COUNT(*) AS count
FROM PROJECTS
GROUP BY status

SELECT priority, *
FROM PROJECTS
WHERE priority = 1

Create Your Own Queries

SELECT d.name        AS department_name,
       AVG(p.salary) AS average_salary
FROM PERSONNEL p
         INNER JOIN DEPARTMENTS d ON p.department_id = d.department_id
WHERE p.status = 'Active'
GROUP BY d.name
ORDER BY average_salary DESC;

This reveals that the department with the highest salary is the “Imperial Naval Command”, which I suppose makes sense since it would likely be the people up the chain of command.

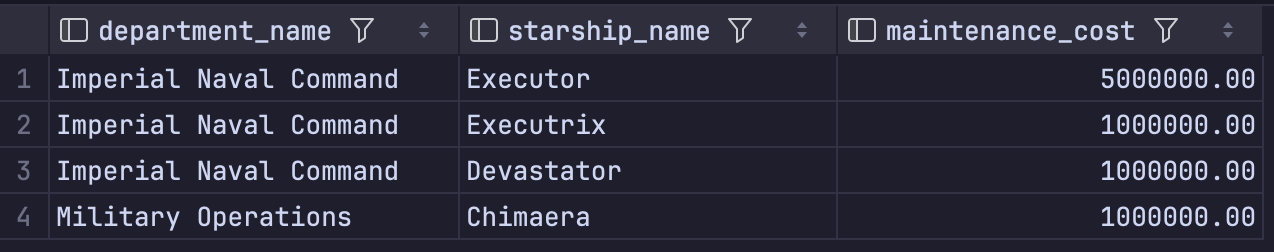

SELECT d.name AS department_name,
       s.name AS starship_name,
       s.maintenance_cost
FROM STARSHIPS s
         INNER JOIN DEPARTMENTS d ON s.department_id = d.department_id
WHERE s.maintenance_cost > 100000
ORDER BY d.name, s.maintenance_cost DESC;

This reveals that the “Imperial Naval Command” department has multiple starships, whereas the “Military Operations” department only has one—which is interesting since I’m assume the military would have more.

(old) Part 3: Advanced Intelligence Operations

I’ll keep this in the document (I did it before it changed to the new part 3)

Command Structure Analysis

SELECT p1.name                          AS personnel_name,
       p1.rank                          AS personnel_rank,
       d.name                           AS department_name,
       COALESCE(p2.name, 'No Superior') AS superior_name,
       COALESCE(p2.rank, 'N/A')         AS superior_rank
FROM PERSONNEL p1
         LEFT JOIN PERSONNEL p2 ON p1.superior_id = p2.personnel_id
         LEFT JOIN DEPARTMENTS d ON p1.department_id = d.department_id
ORDER BY d.name, p1.rank;

Mission Activity Report

SELECT a.start_date                    AS start_date,
       p.name                          AS personnel_name,
       p.rank                          AS personnel_rank,
       COALESCE(s.name, 'No Starship') AS starship_name,
       pl.name                         AS planet_name
FROM ASSIGNMENTS a
         INNER JOIN PERSONNEL p ON a.personnel_id = p.personnel_id
         LEFT JOIN STARSHIPS s ON a.starship_id = s.starship_id
         LEFT JOIN PLANETS pl ON a.planet_id = pl.planet_id
-- all the assignments are active so this isn't really needed, but good to have
WHERE a.status = 'Active'
ORDER BY a.start_date;

Strategic Projects Overview

SELECT d.name                                   AS department_name,
       pl.name                                  AS project_lead,
       p.status                                 AS project_status,
       p.budget                                 AS project_budget,
       p.priority                               AS project_priority,
       SUM(p.budget) OVER (PARTITION BY d.name) AS department_budget
FROM PROJECTS p
         INNER JOIN DEPARTMENTS d ON p.department_id = d.department_id
         INNER JOIN PERSONNEL pl ON p.lead_id = pl.personnel_id
ORDER BY d.name, p.status;
